Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1
Real-time data and full post processing capability
Test specimens of different geometries and dimensions without altering set up
Replaces a range of traditional sensors
Engineered to meet the highest standards of precision, the UVX3D 110 complies with ISO 9513 Class 0.5 and ASTM E83 Class B-1 standards. This ensures that your testing procedures are not only compliant with global benchmarks but also deliver the reliability and accuracy you require.
For more information on compliance standards: ISO 9513 information

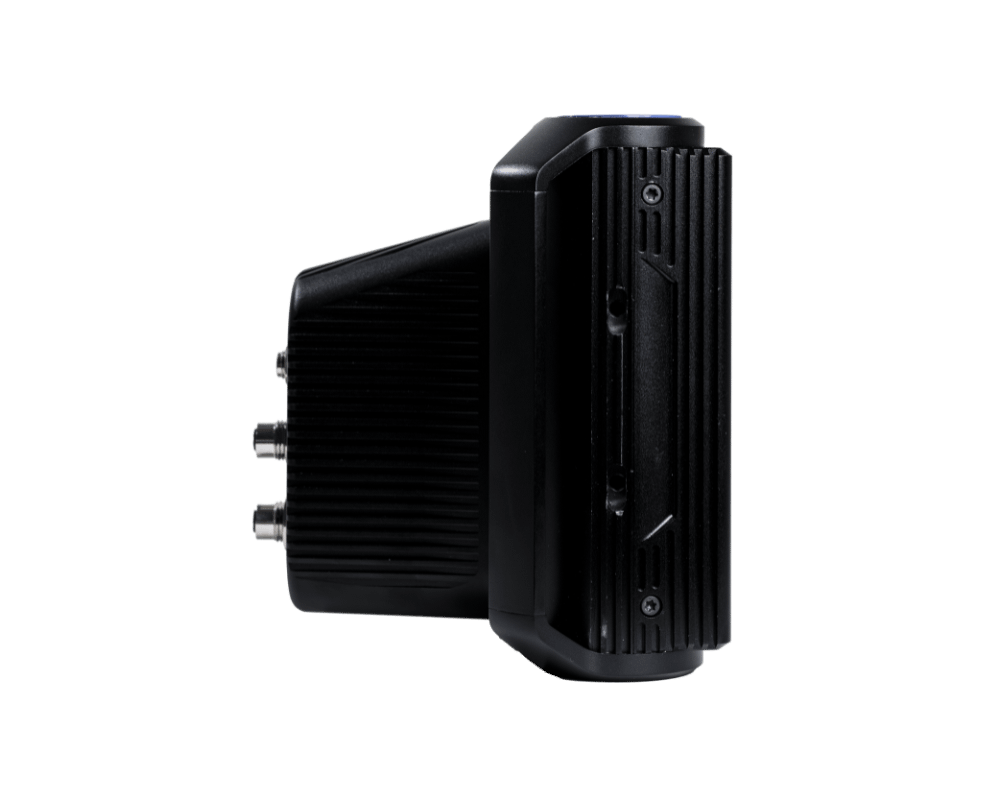

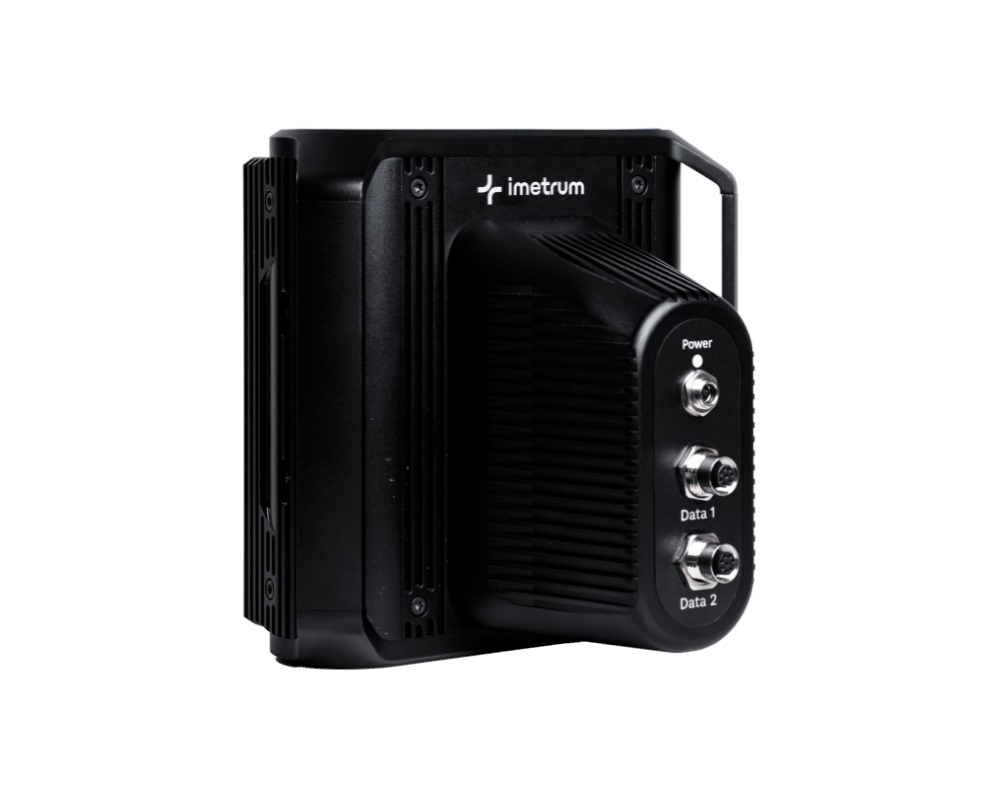

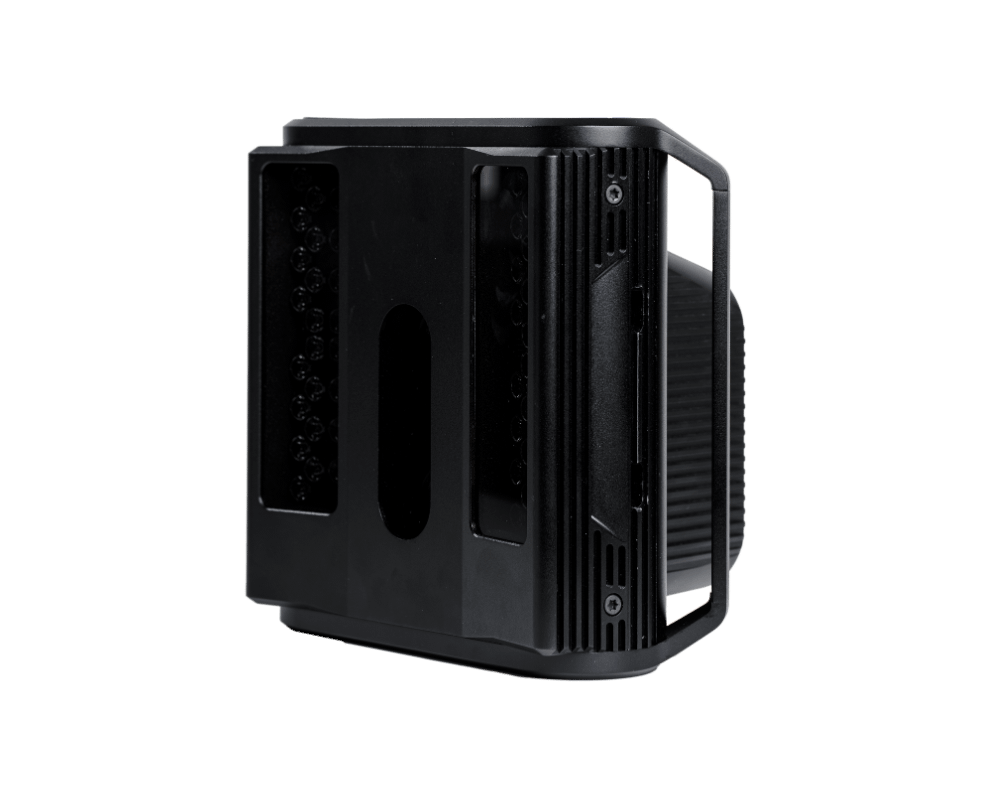

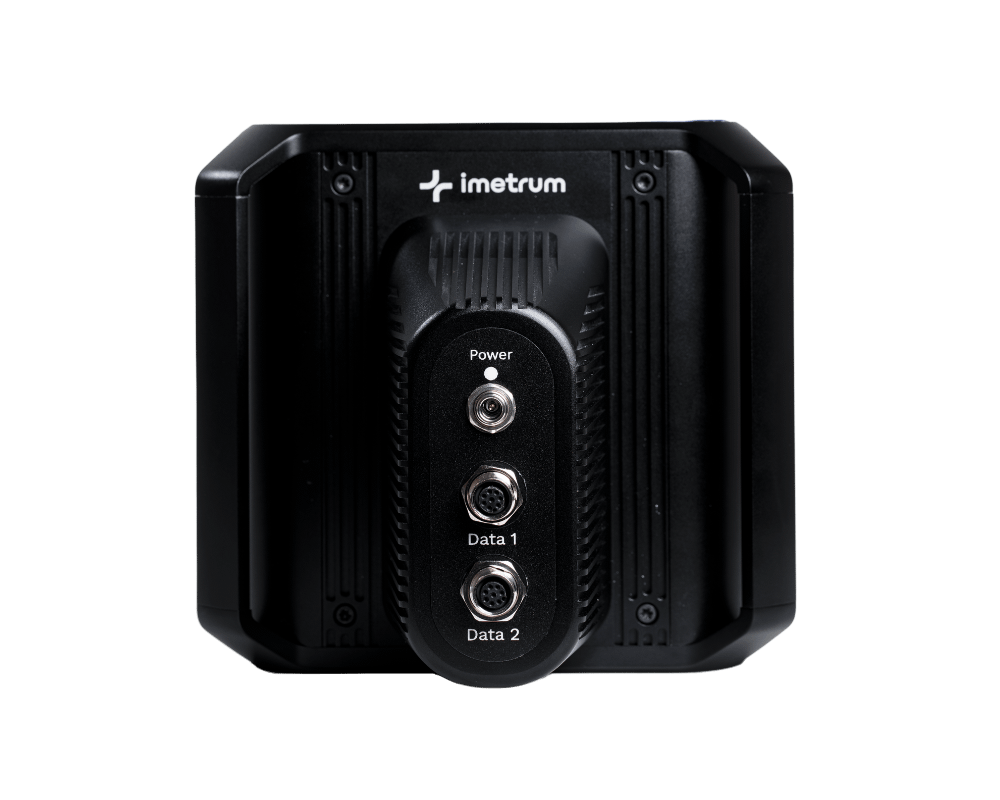

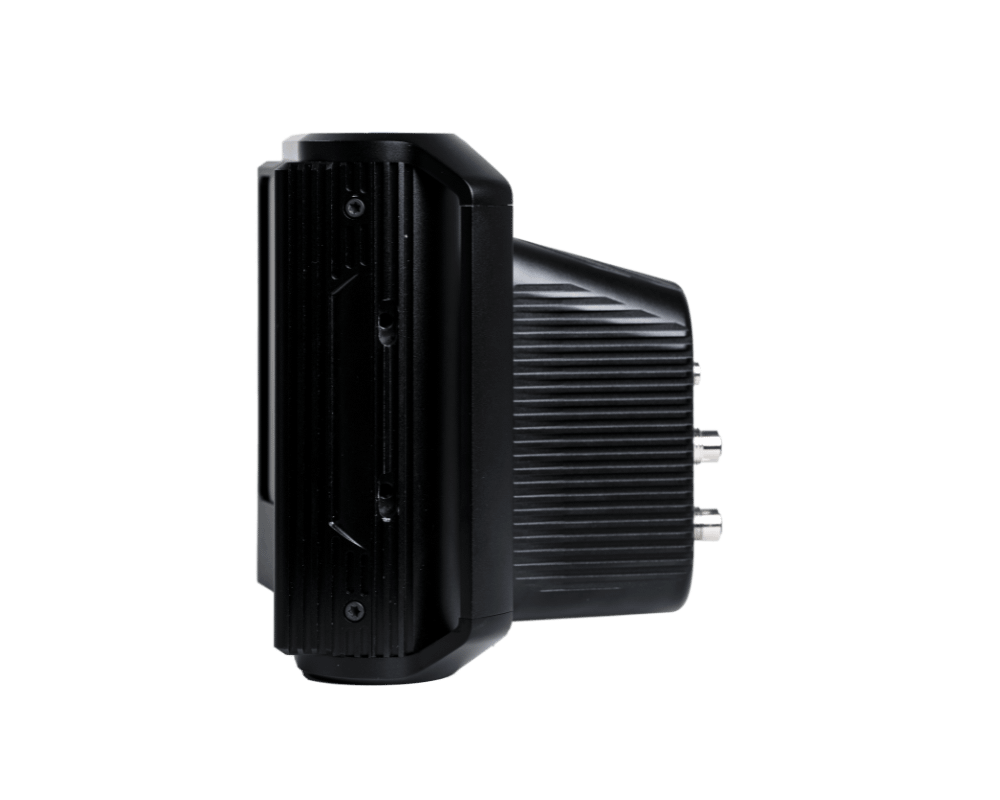

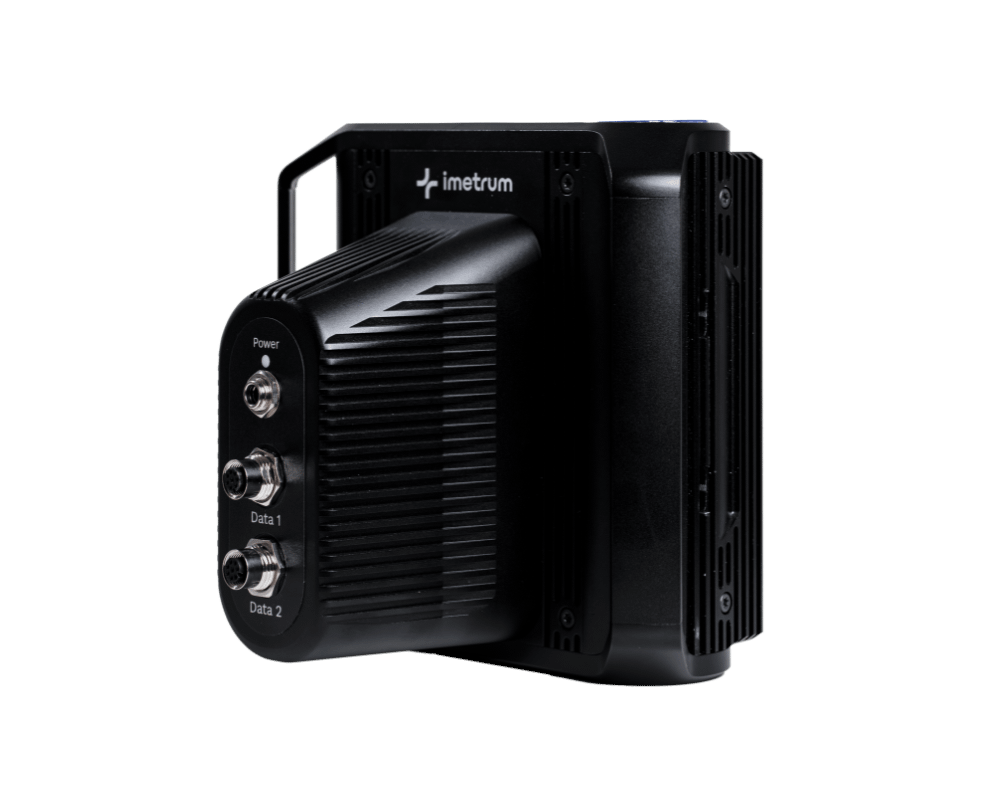

The UVX3D 110 is equipped with a 110mm Field of View (FoV), offering high-resolution precision measurements, that is well suited for smaller gauge lengths. This makes it an ideal choice for tests that demand precise strain measurement with compact areas. For applications requiring larger gauge lengths, our UVX3D 220 model, with a 220mm FoV, offers an equally reliable solution.

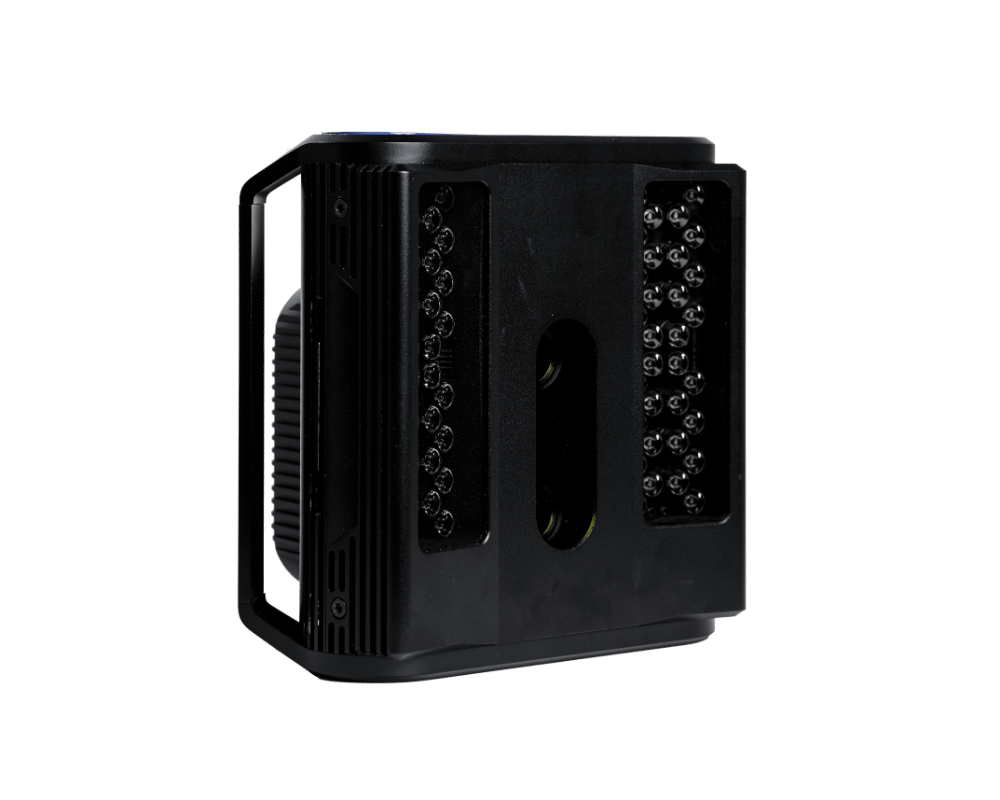

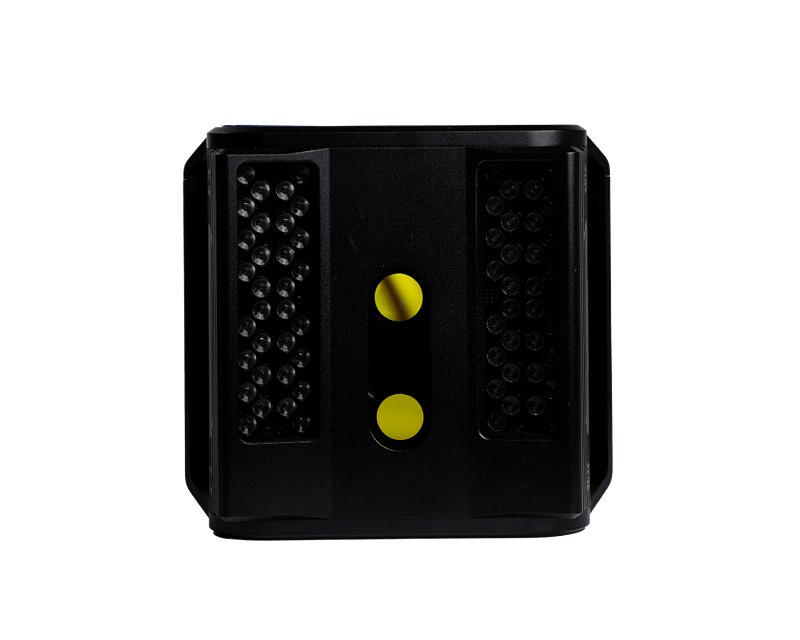

Equipped with advanced optics, the UVX3D 110 is engineered to minimise the effects of glare and ambient lighting. This ensures consistent performance, even in testing environments where lighting conditions are less than ideal. The inbuilt lighting system further enhances its reliability by negating environmental effects and emitted radiation, even during high-temperature testing.
The UVX3D 110 comes with a robust frame mounting kit, designed to integrate effortlessly with the Vector Extensometer mounting system. This compatibility ensures that the extensometer can be securely and easily attached to any test frame, providing stability throughout your testing procedures. The ease of installation combined with the stability of the system contributes to a smooth, more efficient user experience.
For a technical demo and more information on how UVX3D can meet your measurement needs, please fill out the form below.
If you are interested in obtaining a quote or looking for additional information, please fill out the form.
"*" indicates required fields
UVX3D offers higher frame rates and advanced strain rate control capabilities
Consistent performance across a wide range of testing environments
Digital Image Correlation strain and displacement maps are also available
Gauge length: 20 to 200 mm
Minimum specimen width: Axial; 7.5 mm Transverse; 25 mm
Working distance: 300 to 380 mm
Video Gauge™ forms the core of our systems
In Post Processing mode, video data can be reanalysed on any computer
Wide variety of tools and features
